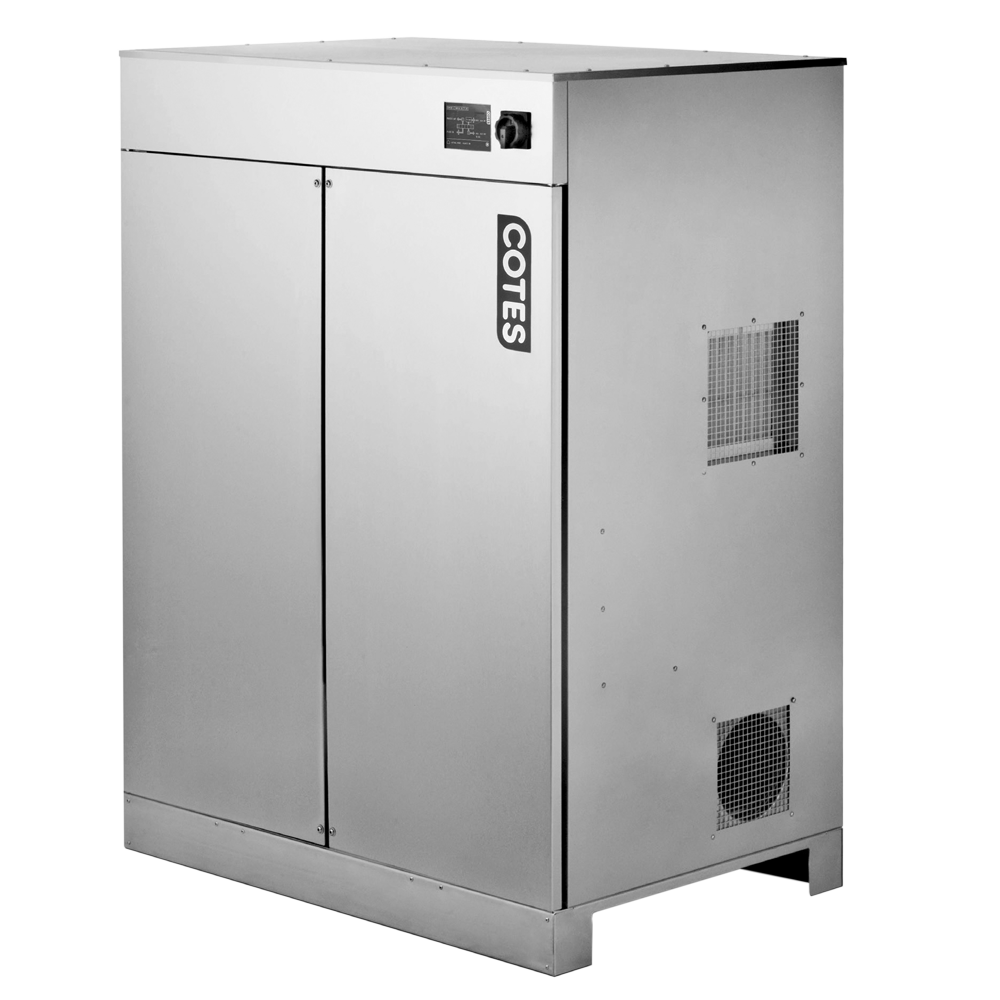

        Cotes C65E/C65D/C65C series dehumidifiers are designed and configured for a wide range of industrial applications. The units are particularly recommended for use in warehouses and cellars, water supply networks, and many types of processing facilities, where stable and precisely controlled air conditions are of key importance. The C65E/C65D/C65C units are designed to minimise total power consumption, facilitate cleaning processes and allow the dehumidifier to be extended with optional heat recovery modules, condensation module and an additional filter.

        • High dehumidification capacity
        • Stainless steel casing
        • Low maintenance costs, which reduces overall operating costs
        • Low noise operation
        • Low energy consumption
        • Easy installation
        adsorption dehumidifier



        The C65E / C65D / C65C dryers series is characterized by a modern design and exceptional reliability. The design guarantees free air flow through the unit, which has an impact on the reduction of: energy consumption, pressure loss and noise level. All components, accessories and functions have been optimized for increased efficiency, extended service life and simplified service.

        Technical specifications

        Model



        Capacity



        Dry air (nominal)

        Regeneration air (nominal)

        Connected power load

        Voltage/phases

        Dimension

        Kg/h

        m³/godz

        m³/godz

        kW

        V

        D/W/H

        C65E-7,8

        7,8¹

        1900

        340

        11,4









        400 (3x230)











        820 x 1165 x 1615

        C65E-11,1

        11,1¹

        2600

        460

        16,2

        C65E-15,4

        15,4¹

        3700

        670

        23,6

        C65E-19,1

        19,1¹

        3700

        940

        32,4

        C65D-7,1

        7,1¹

        1100

        340

        11,1

        C65D-10,1

        10,1¹

        1500

        460

        15,7

        C65D-14,0

        14,0¹

        2200

        670

        22,5

        C65C-1,5

        1,5²

        1900

        340

        6,2

        C65C-3,0

        3,0²

        3700

        340

        10,2



        1 - Wydajność dla 20°C i 60% wilgotności względnej

        2 - Wydajność dla -18°C i 90% wilgotności względnej

        3 - Pełna kontrola w Konfiguracji-C i Konfiguracji-D.

        4 - Możliwość regulacji w Konfiguracji-B i pełna kontrola w Konfiguracji-C i -D. Możliwość regulacji również w Konfiguracji-A z zainstalowanym zestawem wentylatora powietrza regeneracyjnego.
