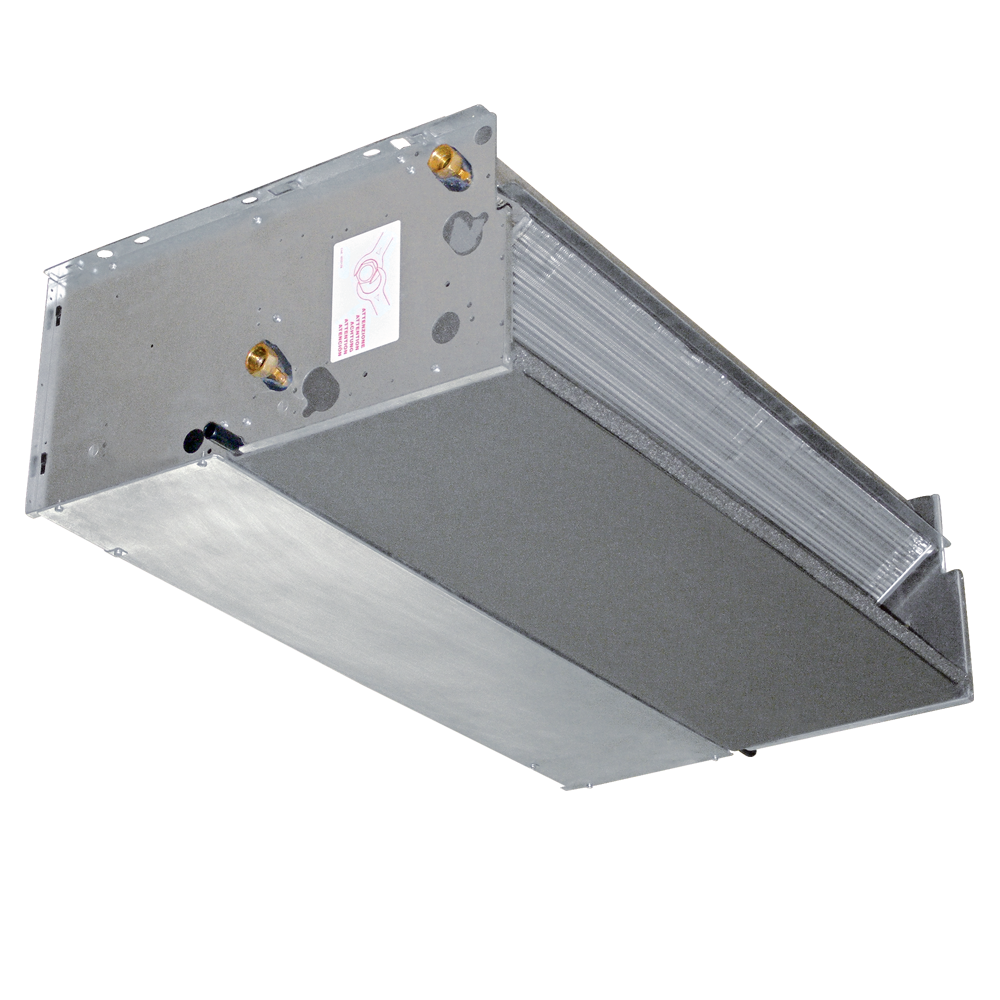

CRSL ECM High pressure ducted fan coil unit with EC brushless electronic engine and inverter board.

The Carisma CRSL-ECM fan coil range aligns with modern industrial design trends, offering high performance, compact size, low noise, and energy efficiency while ensuring easy installation and maintenance.

The range includes six sizes (120–2980 m³/h), each with a 3 or 4-row coil and the option to add a 1 or 2-row coil for 4-pipe systems. It is ideal for ducted installations up to 80 Pa in offices, shops, restaurants, and hotels, complying with Regulation (EU) No. 327/2011. Additionally, various accessories are available, including adjustment valves, an electric heater, an auxiliary condensate pump, and air inlet/outlet diffusers for fitted installations.

Technical specifications

model	speed	V	Δp	Qch	Qg	Δpch	Δpg	Nel	Lw outlet	Lw inlet	Lp outlet	Lp inlet
		m3/h	Pa	kW	kW	kPa	kPa	W	dB(A)	dB(A)	dB(A)	dB(A)
CRSL-ECM 03	min.	110	10	0,75	0,8	3,5	1,7	7	29	36	20	27
	med.	225	50	1,39	1,5	6,7	5,5	21	43	50	34	41
	max.	290	75	1,65	1,9	9,2	8	37	48	55	39	46
CRSL-ECM 13	min.	240	32	1,64	1,65	13,3	11,6	18	38	45	29	36
	med.	305	50	1,97	2,05	18,7	17	29	44	51	35	42
	max.	360	68	2,23	2,37	23,5	22,1	39	48	55	39	46
CRSL-ECM 23	min.	430	34	2,72	2,88	11,5	10,2	26	42	48	33	39
	med.	540	50	3,21	3,51	15,6	14,6	43	47	55	38	46
	max.	630	70	3,55	4	18,9	18,5	64	49	58	40	49
CRSL-ECM 43	min.	595	24	3,84	4,07	11,8	10,6	30	44	51	35	42
	med.	835	50	4,94	5,56	18,9	18,6	67	52	59	43	50
	max.	960	66	5,43	6,27	22,5	23	98	55	62	46	53
CRSL-ECM 73	min.	900	30	5,66	5,69	12,1	9,8	52	47	54	38	45
	med.	1175	50	6,81	7,09	17,1	14,6	100	54	61	45	52
	max.	1410	72	7,67	8,24	21,4	19,1	155	57	64	48	55
CRSL-ECM 83	min.	1238	28	6,75	7	19	25	84	49	56	40	47
	med.	1638	50	8,6	9,25	29	34	160	56	63	47	54
	max.	1923	70	10	10,7	39	43	246	59	66	50	57
CRSL-ECM 04	min.	110	10	0,8	0,8	3,5	2,6	7	29	36	20	27
	med.	225	50	1,55	1,65	10,8	8,1	21	43	50	34	41
	max.	290	75	1,95	2	15,4	12,3	37	48	55	39	46
CRSL-ECM 14	min.	240	32	1,77	1,73	7,2	6,7	18	38	45	29	36
	med.	305	50	2,17	2,17	10,3	9,9	29	44	51	35	42
	max.	360	68	2,48	2,52	13,2	13,1	39	48	55	39	46
CRSL-ECM 24	min.	430	34	3,14	3,08	17,5	14,1	26	42	48	33	39
	med.	540	50	3,79	3,8	24,7	20,6	43	47	55	38	46
	max.	630	70	4,25	4,37	30,6	26,6	64	49	58	40	49
CRSL-ECM 44	min.	595	24	4,09	4,19	7,7	6,5	30	44	51	35	42
	med.	835	50	5,34	5,77	12,6	11,5	67	52	59	43	50
	max.	960	66	5,91	6,55	15,2	14,5	98	55	62	46	53
CRSL-ECM 74	min.	900	30	6,12	6,26	9,9	8,9	52	47	54	38	45
	med.	1175	50	7,46	7,96	14,3	13,8	100	54	61	45	52
	max.	1410	72	8,47	9,35	18,1	18,4	155	57	64	48	55
CRSL-ECM 84	min.	1238	28	7,2	8	20	20	84	49	56	40	47
	med.	1638	50	9,25	10	30	30	160	56	63	47	54
	max.	1923	70	10,6	11,5	40	39	246	59	66	50	57
model	bieg	V	Δp	Qch	Qg	Δpch	Δpg	Nel	Lw wylot	Lw wlot	Lp wylot	Lp wlot
		m3/h	Pa	kW	kW	kPa	kPa	W	dB(A)	dB(A)	dB(A)	dB(A)
CRSL-ECM 03+1	min.	110	10	0,75	0,56	3,5	1,1	7	29	36	20	27
	med.	225	50	1,39	1,07	5,5	2,4	21	43	50	34	41
	max.	290	75	1,65	1,29	6,5	3,2	37	48	55	39	46
CRSL-ECM 13+1	min.	240	32	1,64	1,46	13,3	5,4	18	38	45	29	36
	med.	305	50	1,97	1,72	18,7	7,2	29	44	51	35	42
	max.	360	68	2,23	1,92	23,5	8,9	39	48	55	39	46
CRSL-ECM 23+1	min.	430	34	2,72	2,36	11,5	3,1	26	42	48	33	39
	med.	540	50	3,21	2,74	15,6	4	43	47	55	38	46
	max.	630	70	3,55	3,03	18,9	4,8	64	49	58	40	49
CRSL-ECM 43+1	min.	595	24	3,84	3,09	11,8	4,9	30	44	51	35	42
	med.	835	50	4,88	3,87	18,4	7,4	67	52	59	43	50
	max.	960	66	5,35	4,22	21,9	8,6	98	55	62	46	53
CRSL-ECM 73+1	min.	900	30	5,66	4,7	12,1	10,5	52	47	54	38	45
	med.	1175	50	6,81	5,6	17,1	14,4	100	54	61	45	52
	max.	1410	72	7,67	6,31	21,4	17,8	155	57	64	48	55
CRSL-ECM 83+1	min.	1238	28	6,75	6	19	20	84	49	56	40	47
	med.	1638	50	8,6	7	29	27	160	56	63	47	54
	max.	1923	70	10	7,8	39	29	246	59	66	50	57

V- Air flow [m3/h]

Qch- Cooling total emission [kW], Qg- Heating [kW]

Δpch- Dp Cooling [kPa], Δpg- Dp Heating [kPa]

Nel- electric power [W], power supply 230/1/50 V/Ph/Hz

Lp- Sound pressure [dB(A)], Lw- Sound power [dB(A)]
